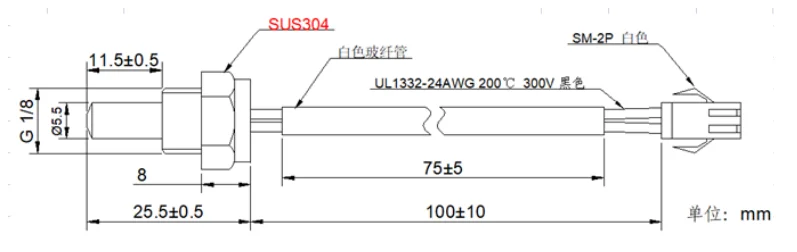

Stainless Steel NTC Thermistor Temperature Sensor Probe Screw Thread Nut 10K 3435

Screw Thread Nut Stainless Steel NTC Thermistor Temperature Sensor Probe 10K 1% 3435 For Boiler

Temperature sensor (NTC) is a real -time monitoring component of the heating and living hot water temperature of wall -mounted stoves. The role is to perceive the temperature change of heating or hot water in life, and convert it into a electrical signal to the main circuit board to achieve the effect of regulating the ideal temperature and energy saving and consumption reduction. McGee gas wall -mounted boiler has two major functions: heating and living hot water, so the temperature sensor is also divided into two types: heating temperature sensor and hot water temperature sensor.

The working principle of the temperature sensor NTC is: the resistance value of the internal thermistor will change with the temperature changes, and conveys different current values to the main circuit board. Wall -hanging stoves control the flame size and adjust the operating temperature.

If the temperature sensor is damaged or short -circuit, the McGee wall hanging boiler will stop working and display the fault code E6 or E7. If the operating temperature of the wall -hanging boiler exceeds the limited temperature, the wall -hung boiler will automatically stop to prevent the dry burning from danger.

1. Spring core element with the use of MF58 glass -seal NTC thermistor can resist humidity
2. Use spring steel as a installation bracket, so the temperature sensor can be convenient and easily sandwiched on the pipeline
3. Durable rapid response and moisture resistance
4. Long -term use of stability is very good
5. Widely used for wall -mounted boilers and industries with dual -use furnaces
6. Scope of application: hot water suppliers (wall -mounted boilers, dual -use boilers, etc.)

The main products of the company include: NTC thermistor, NTC temperature sensor, NTC temperature probe, NTC temperature sensing line, NTC temperature metering line, micro -NTC custom design, etc. The products are widely used in household appliances, communication, electric power, medical equipment, test instruments, power equipment, industrial electronic equipment and other fields.

1. Overview

Stainless Steel NTC Thermistor Temperature Sensor

3435 NTC Thermistor Temperature Sensor Probe

ntc 10k thermistor temperature sensor

Stainless Steel NTC Thermistor Temperature Sensor Probe Screw Thread Nut 10K 3435 Images
