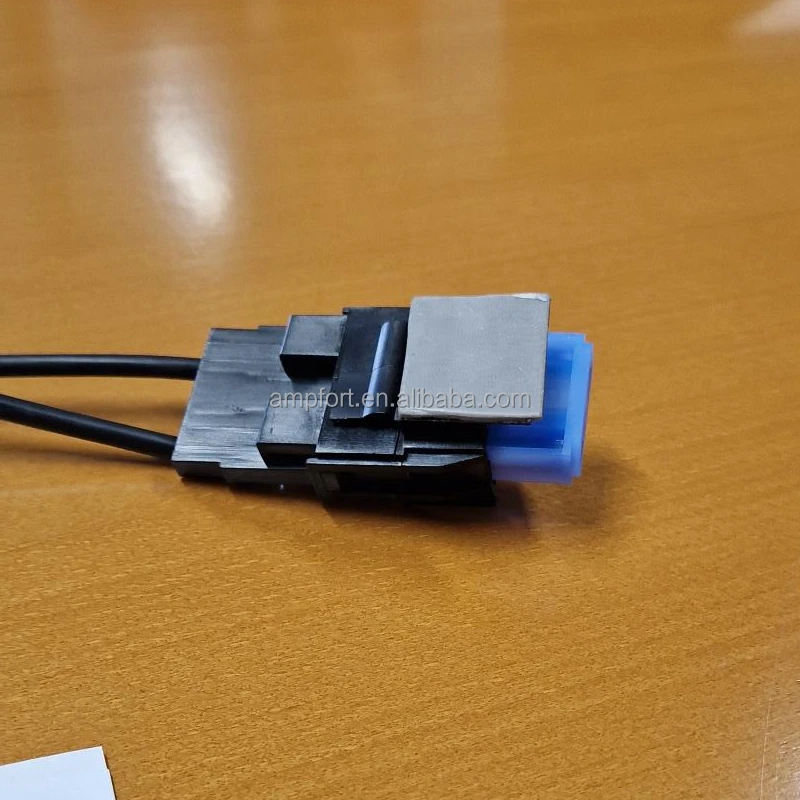

01520001 Equivalent Maxi Auto Automotive Blade MAB In-Line Screw Terminal Fuse Holder 32V 60A Block Box For Commercial Vehicle
The MAXI MAB Series 32V In-Line Screw Terminal Fuse Holder is deigned to safely and easily replace hard-tochange fusible link wire. Compatible with up to 60-amp MAXI blade fuses (sold separately), this automotive fuse holder is ideal for high-amp audio circuit protection.An available dust cover helps safeguard the installed fuse from debris, while the interlocking fuse holder block feature allows 2-pole installation.
This fuse holder provides an efficient, simple installation method for MAXI/ATM Style fuse applications.
Vertical PC Mount for .312 x .032 Maxi blade fuses
Terminal A for wire ∅2.5-6mm², Current is 60A MAX;
Termianl B for wire ∅ 5-10mm², Current is 100 MAX.
Screws ¢5.3mm , M 5x8
Substitute Littelfuse 01520001

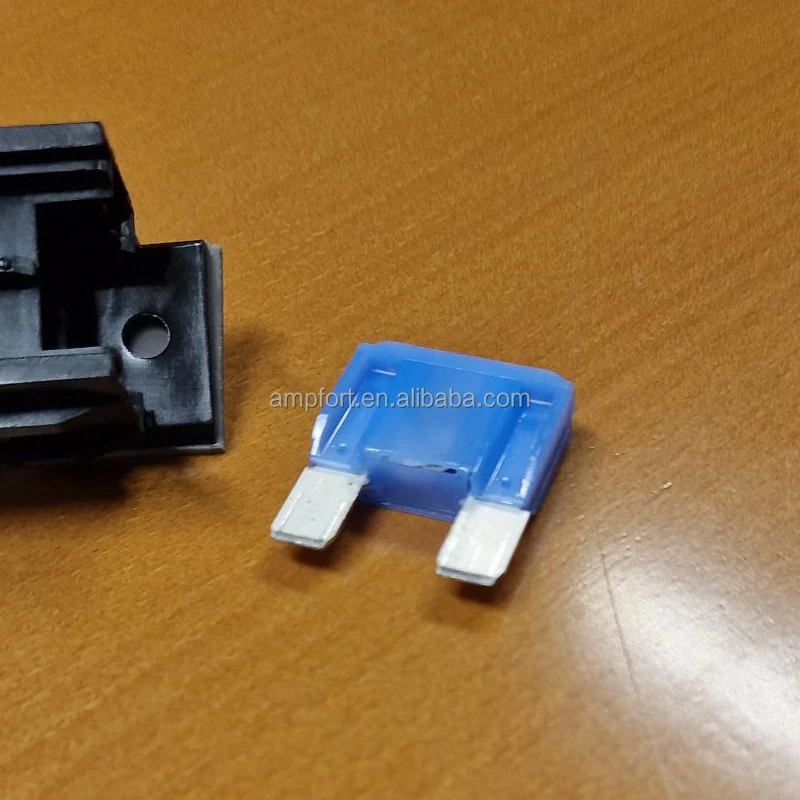

Compatible with MAXI® blade fuses up to 60 amps (sold separately)
Interlocking fuse holder block feature enables 2-pole installation

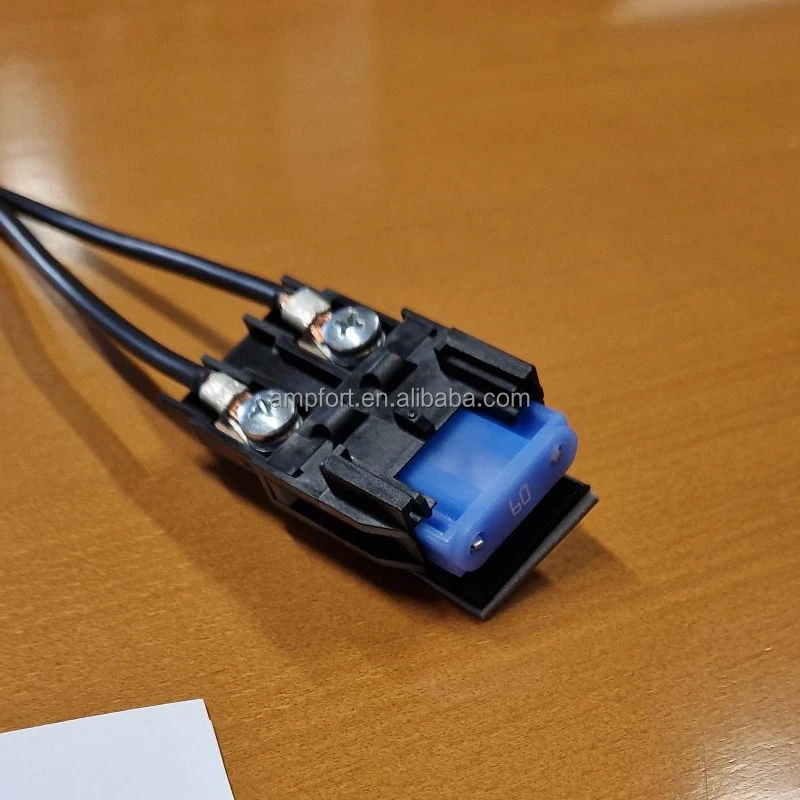

Screw terminals make in-line installation easy

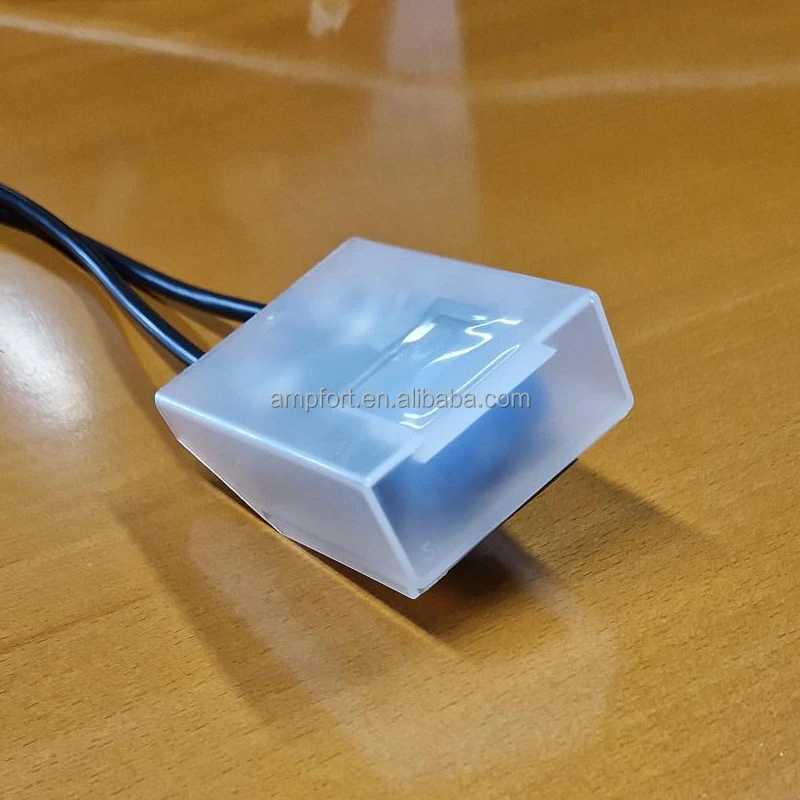

Available dust cover helps protect the installed fuse
UL 94 V-2 flammability rating
High-Amp Audio Circuit Protection

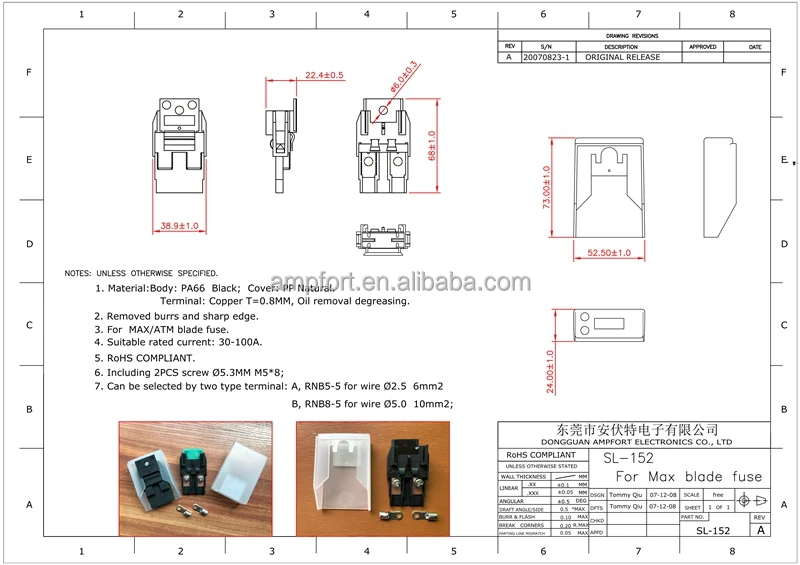

1.Size
2.Electrical Characteristics
| Category | Circuit Protection |
| Name | Fuseholders |
| Mfr | Ampfort/Commercial Vehicle Products |
| Series | 152001(SL-152) |
| Package | Bulk |
| Fuse Size | 1.161" L x 0.374" W (29.5mm x 9.5mm) |
| Current Rating (Amps) | 60 A |
| For Use With/Related Products | Maxi (ATX) |
| Fuse Type | Blade |
| Fuseholder Type | Holder |
| Number of Circuits | 1 |
| Voltage | 32V |
| Termination Style | Screw Terminal |
