ANS Bolt On Automotive MIDI Bolt Down Fuse 20A 30 Amp 40 Amp 50A 60A 70A 80A 100A 125A 150A 175A 200A
ANS fuses shown are for in motor vehicles, automobile air-conditioning system, Electric Vehicle to protect electrical wiring and vehicles. This standard is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements. You can use our fuseholder ANS-H, ANF-H, ANG-H to being instanded.
Product name: ANS small bolt type car fuse
Product size: 42*8.7*12mm
Rated current: 20A-200A
Rated voltage: 32V
Safety certification: National standard
Product Type: F-Fast-Acting Fuse
Product packaging:
1. Bulk packaging: 1000PCS per plastic bag
Product advantages:
(1) Small size, small space, easy to install and use
(2) Shell insulation, flame retardant
1.A fuse offers a bolt-on space saving fuse for high current wiring protection. This action is to be nonreversible and the fuse is intended to be replaced after the circuit malfunction has been corrected.
2. Interrupting Rating: 1000A @ 32 VDC
3.Voltage Rating: Below 32 VDC
4. Operating Temperature Range: -40C to + 125C
5. Housing Material: PC
6. Terminal: Ni plated Zn
7. Mounting Torque M5: 4.5 Nm +/- 1Nm
8. Mounting Torque M6: 6.0 Nm +/- 1Nm
9. Case can be printed the current code
Protection circuit, stable properties Possess good electrical conductivity, low temperature resistance, high temperature resistance, corrosion resistance, and effective protection of the circuit.
power adapters, car navigation, mobile phones, LCD TVs, notebook computers, communication equipment, instruments, tuners, wireless remote control materials, car audio equipment, household industrial electrical appliances and other electronic products

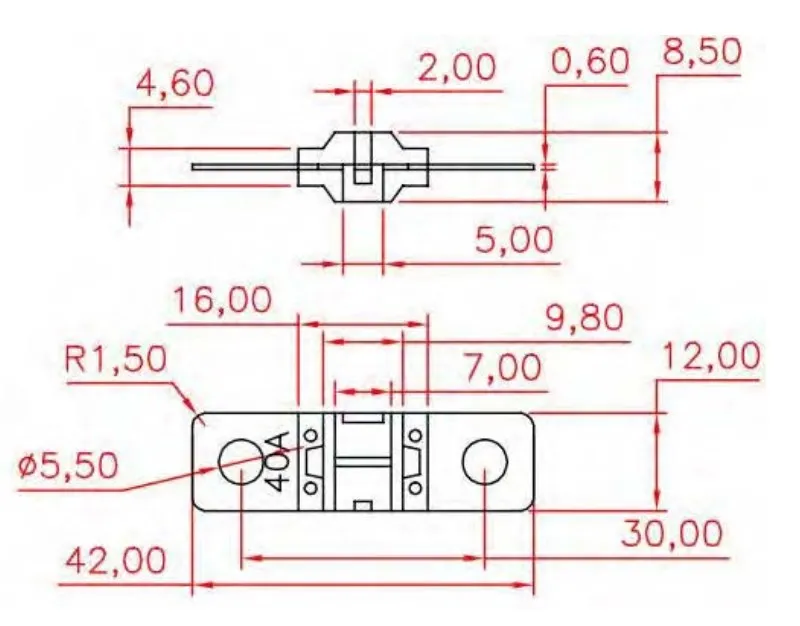

Size (unit:mm)
Electrical Characteristics
| %Rating current | Fusing time |
| Min | Max |
| 75%(150A And above) | 100 hr | / |
| 100% | 100 hr | / |
| 110% | 4 hr | / |
| 150% | 90 sec | 3600 sec |
| 200% | 3 sec | 100 sec |
| 200%(150A And above) | 1 sec | 15 sec |
| 300% | 0.3 sec | 3 sec |
| 350%(150AAnd above) | 0.3sec | 5 sec |
Ordering info
| Part No | Rated current | Color |
| ANS- 20A | 20 A | Yellow |
| ANS- 30A | 30 A | orange |
| ANS- 40A | 40 A | Green |
| ANS- 50A | 50 A | Red |
| ANS- 60A | 60 A | / |
| ANS- 70A | 70 A | Brown |
| ANS- 80A | 80 A | White |
| ANS- 90A | 90 A | / |
| ANS- 100A | 100 A | Blue |
| ANS- 125A | 125 A | Pink |
| ANS- 150A | 150 A | Grey |
| ANS- 175A | 175 A | Brown |
| ANS- 200A | 200 A | Black |
